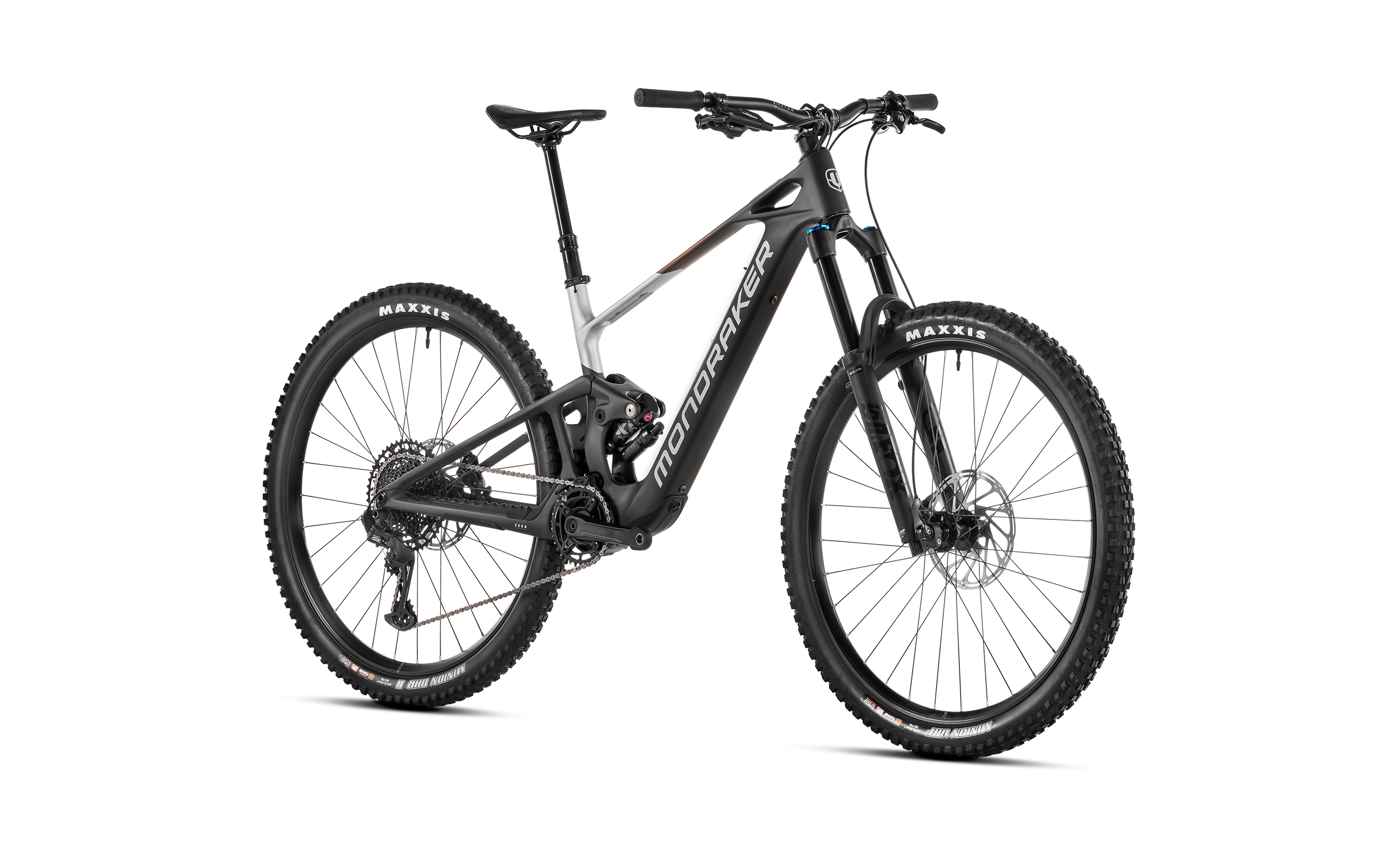

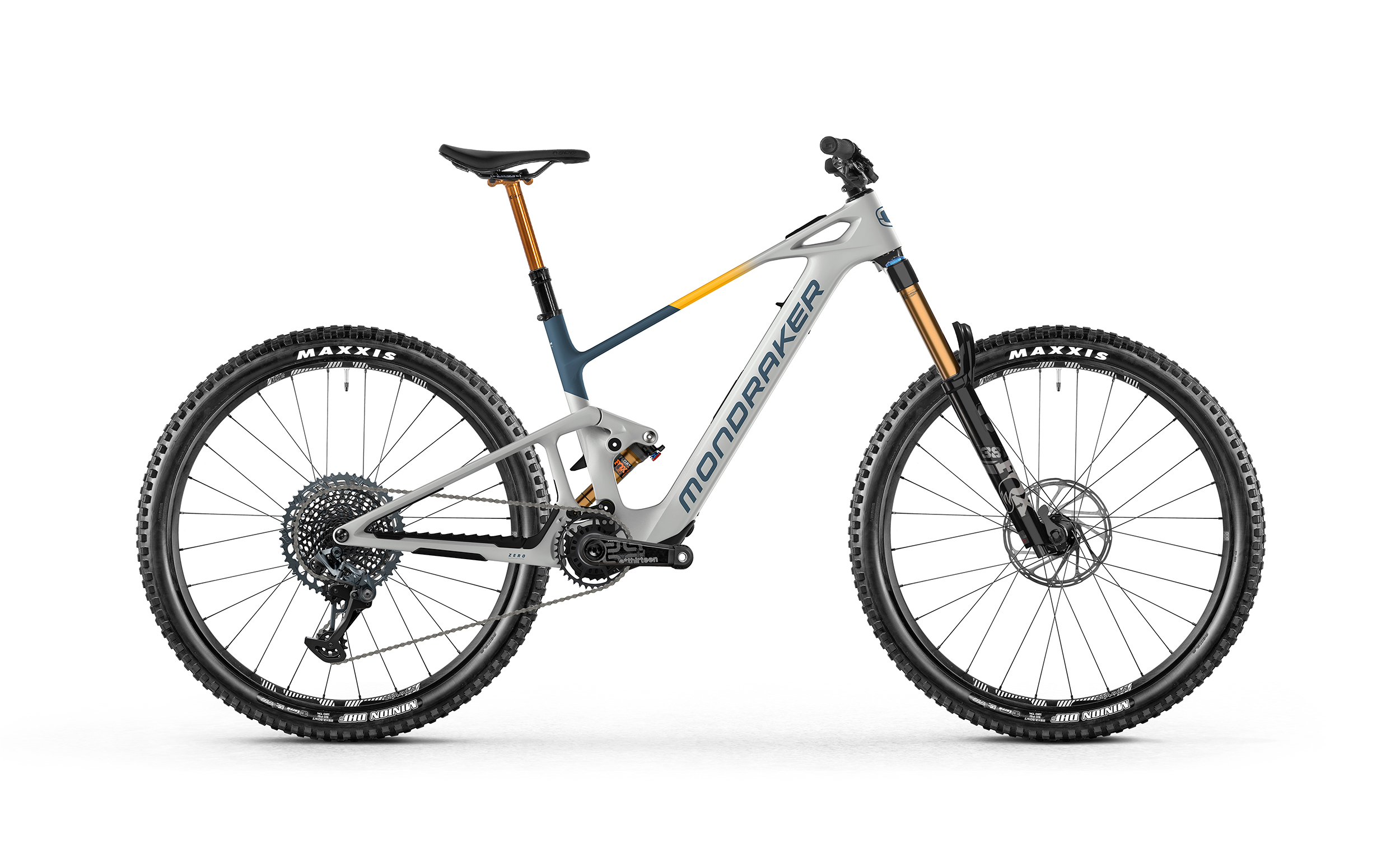

The carbon frame is the centerpiece of the new Light E-Mountainbike from Mondraker. A weight of 2300 grams, 150 millimeters of travel at the rear, a Fox 36 fork, the in-house Forward geometry and the patented rear suspension system with completely new kinematics form the basis for all models. Light e-mountainbike-specific wheels, tires and a 4-piston brake system complete the package.

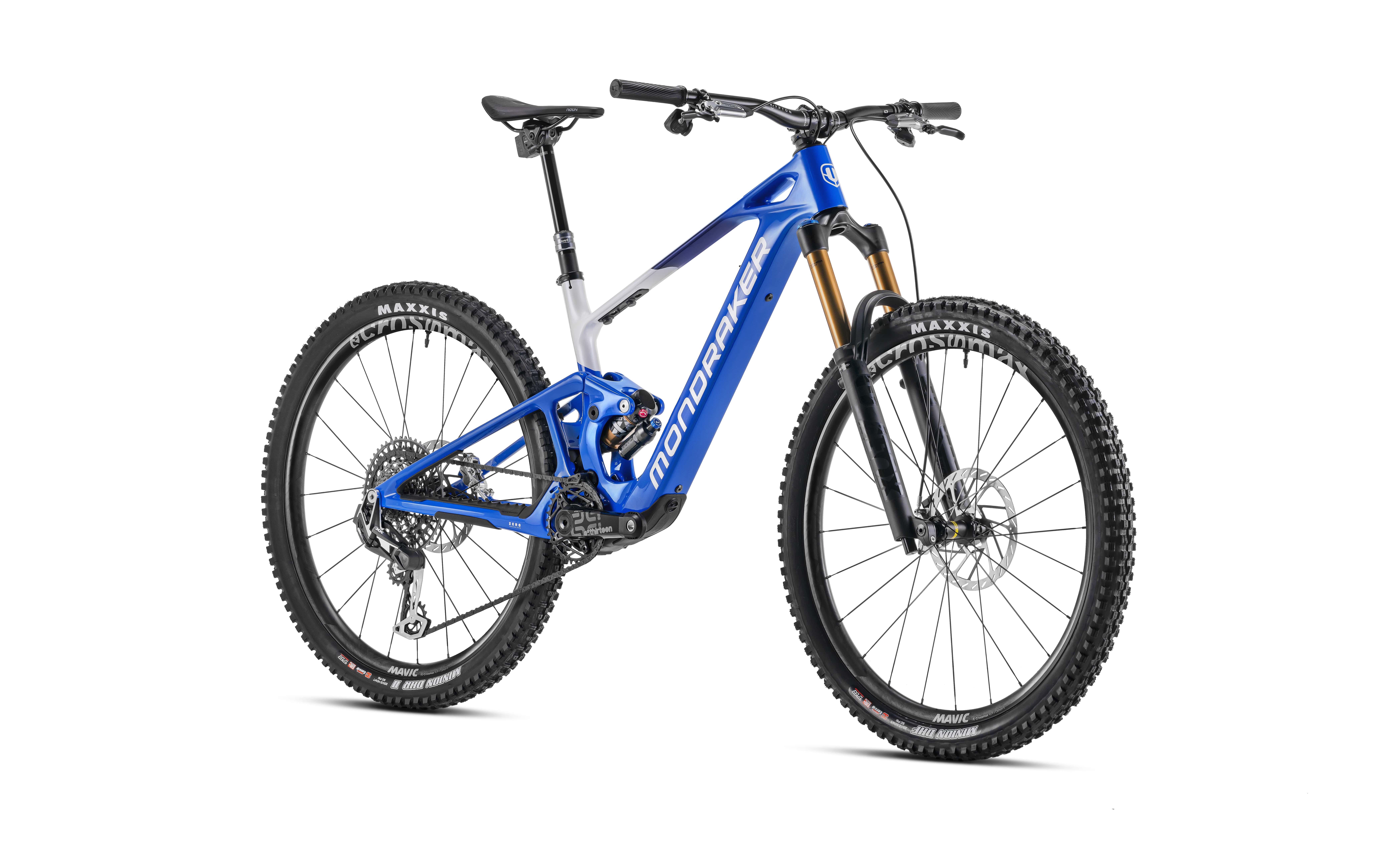

The total weight has reached an interesting mark: the complete bike in the RR SL Spec weighs just under 18kg. The TQ-HPR50 drive system consists of a compact motor, the integrated and removable 360Wh battery, a 2-inch display built into the top tube, the wireless controller and an optionally available 160Wh range extender. The entire system weighs only 3.9 kg, which is evenly distributed between the motor and battery . The optionally available TQ Range Extender is connected to the frame via a lockable Fidlock system and weighs 984 grams. The range extender gives the system 50 percent more range.The TQ drive offers three different support levels, all of which operate almost silently and are intended to be reminiscent of pedaling a bike without a motor. The motor delivers up to 300 W of power and has a torque of 50 Nm. The range for a rider weighing 75 kilograms, which is influenced by many factors, is around 40-50 kilometers and 1000 meters of altitude in a mix of eco and mid-assist modes.
